In the precision-driven world of RF and microwave testing, selecting the appropriate passive component is crucial for achieving accurate and reliable results. Among the foundational elements, the distinction between Power Dividers and Power Splitters is often pivotal, yet sometimes overlooked. Concept Microwave Technology Co., Ltd., a leading manufacturer of high-performance passive components, provides clarity on their unique roles to help engineers optimize their measurement setups.
Understanding the Core Difference
While both devices manage signal paths, their design principles and primary purposes differ significantly:
Power Dividers are designed based on equivalent 50Ω resistors, ensuring all ports are impedance-matched to 50Ω. Their main function is to equally split an input signal into two or more output paths with high isolation and phase matching. They are ideal for applications requiring precise signal distribution, such as comparative measurements, broadband signal sampling, or when used in reverse as power combiners.
Power Splitters, typically built with a two-resistor network, are engineered primarily to enhance the effective output match of a signal source. By minimizing reflections, they reduce measurement uncertainty and are particularly valuable in applications like source leveling and precise ratio measurements, where test stability is paramount.
Application-Driven Selection
The choice hinges on the specific test requirement:

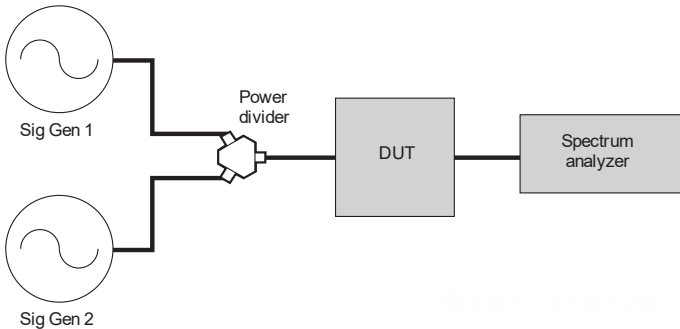

Use Power Dividers for antenna feed networks, IMD (Intermodulation Distortion) test setups as combiners, or diversity gain measurements where equal power division is needed.

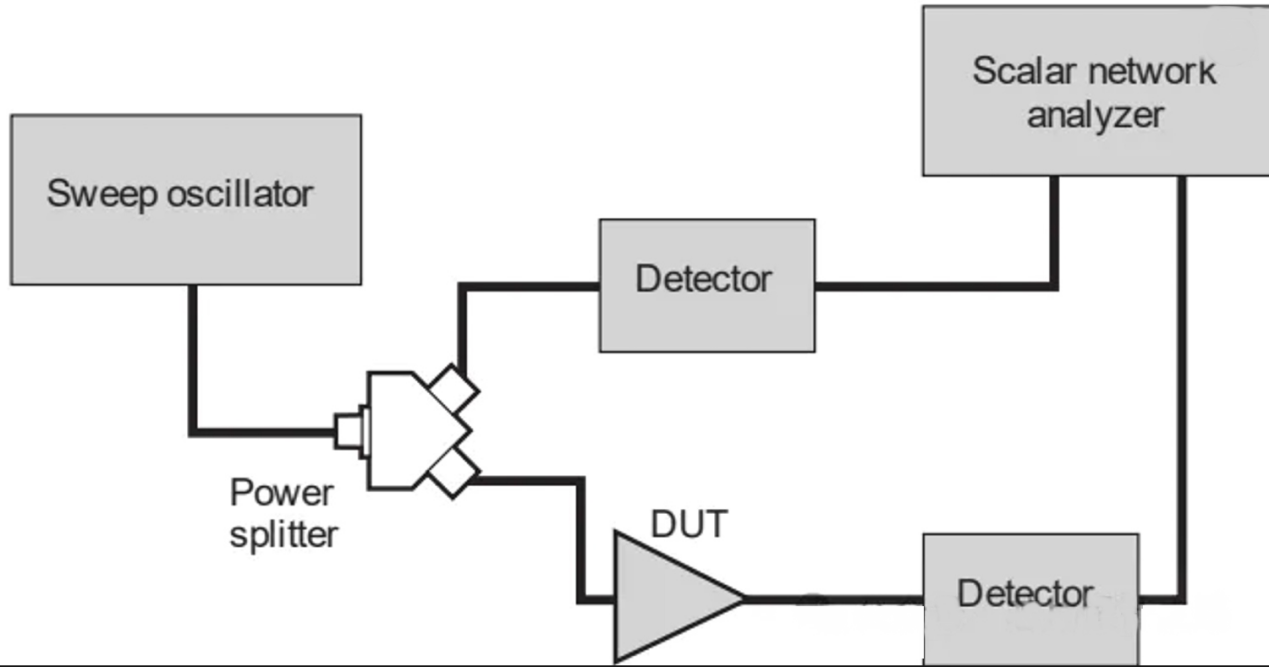

Opt for Power Splitters when performing amplifier gain/compression tests or any application where improving source match directly translates to higher measurement accuracy and repeatability.
