Passive filters are essential in RF and microwave systems. They reduce interference, improve signal purity, and protect sensitive equipment. But after installing a filter, many engineers notice a problem: interference drops, but so does signal strength.
In most cases, the filter is not defective. The real issue is usually system-level mismatch—insertion loss, band mismatch, VSWR, or cumulative RF chain loss. At Concept Microwave, we help customers solve these problems every day. Here are the key causes and practical checks.
1. Insertion Loss Is Normal—and It Adds Up

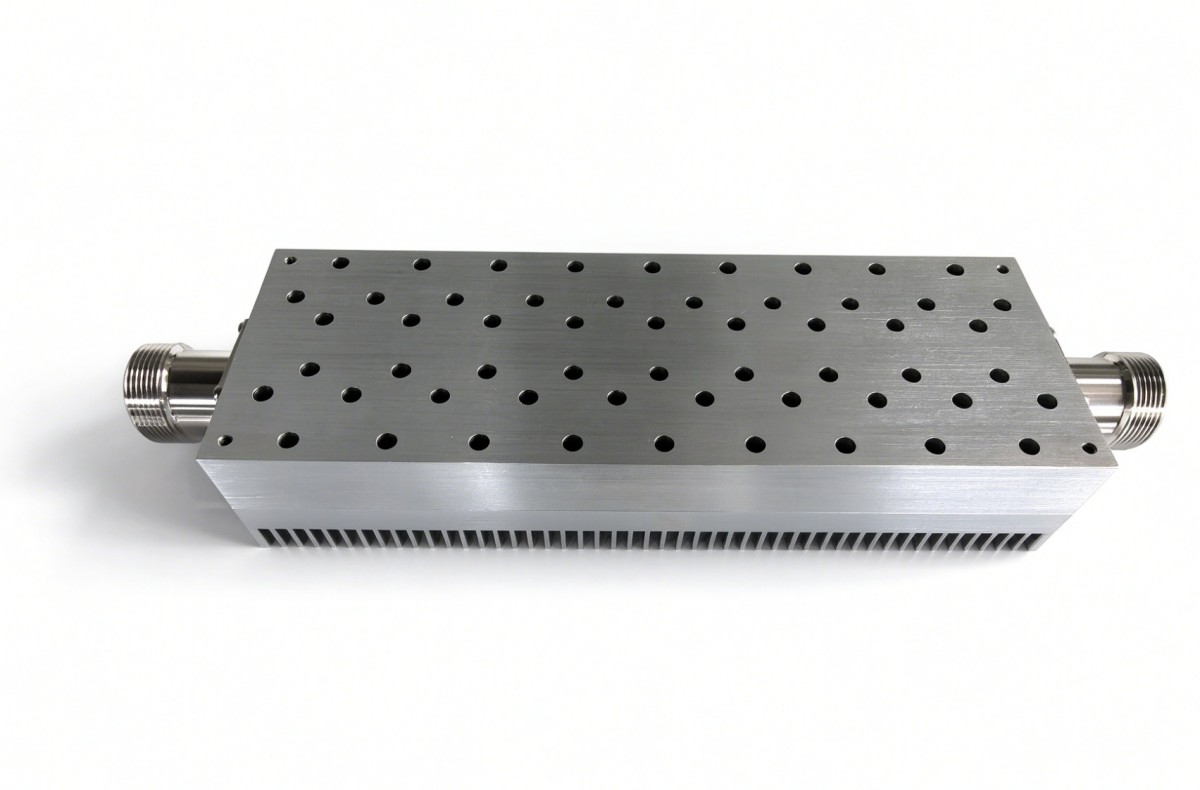

Every passive filter introduces insertion loss. A high-quality cavity filter may add only 0.5–1 dB, while standard filters often add 1–3 dB or more. In large DAS or 5G systems, even 1 dB can reduce coverage and uplink performance.
Concept Microwave designs low-loss filters with detailed insertion loss data from DC to 50 GHz.
2. Frequency Band Mismatch
A filter may connect mechanically but not match electrically. If the filter’s passband does not fully cover the system’s operating band, signal will be attenuated at the edges. This is common in 5G and multi-band DAS applications.
Always confirm that the filter covers the full operating band, including guard bands.
3. Poor VSWR Causes Signal Reflection
If the filter’s impedance is not well matched to the system, usually 50 Ω, part of the signal is reflected instead of transmitted. Symptoms include unstable coverage, fluctuating signal strength, and higher return loss.
Concept Microwave cavity and microstrip filters are designed for VSWR ≤ 1.5:1 in the passband.
4. The Filter Is Only One Part of the RF Chain
Cables, splitters, couplers, and connectors also add loss. A 50 m feeder cable can add 3–5 dB, a splitter 3 dB, and a coupler 1–2 dB. When these losses combine, the filter often gets blamed unfairly.
A complete link budget analysis is essential before installation.
5. Filter Quality Matters in 5G and DAS
Low-cost filters may show acceptable datasheets but perform poorly in real deployments: high insertion loss, weak isolation, poor out-of-band rejection, temperature drift, and high PIM. These issues are magnified in 5G, DAS, and multi-operator sites.
Concept Microwave offers filters with high isolation, excellent rejection, wide temperature stability, and low PIM performance for demanding RF environments.
