High-performance 3G/4G LTE Band 1 Cavity Duplexer | 1920-1980MHz Tx, 2110-2170MHz Rx
Description

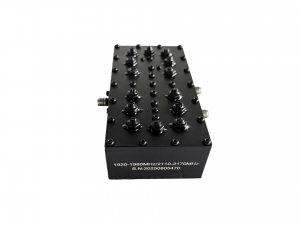

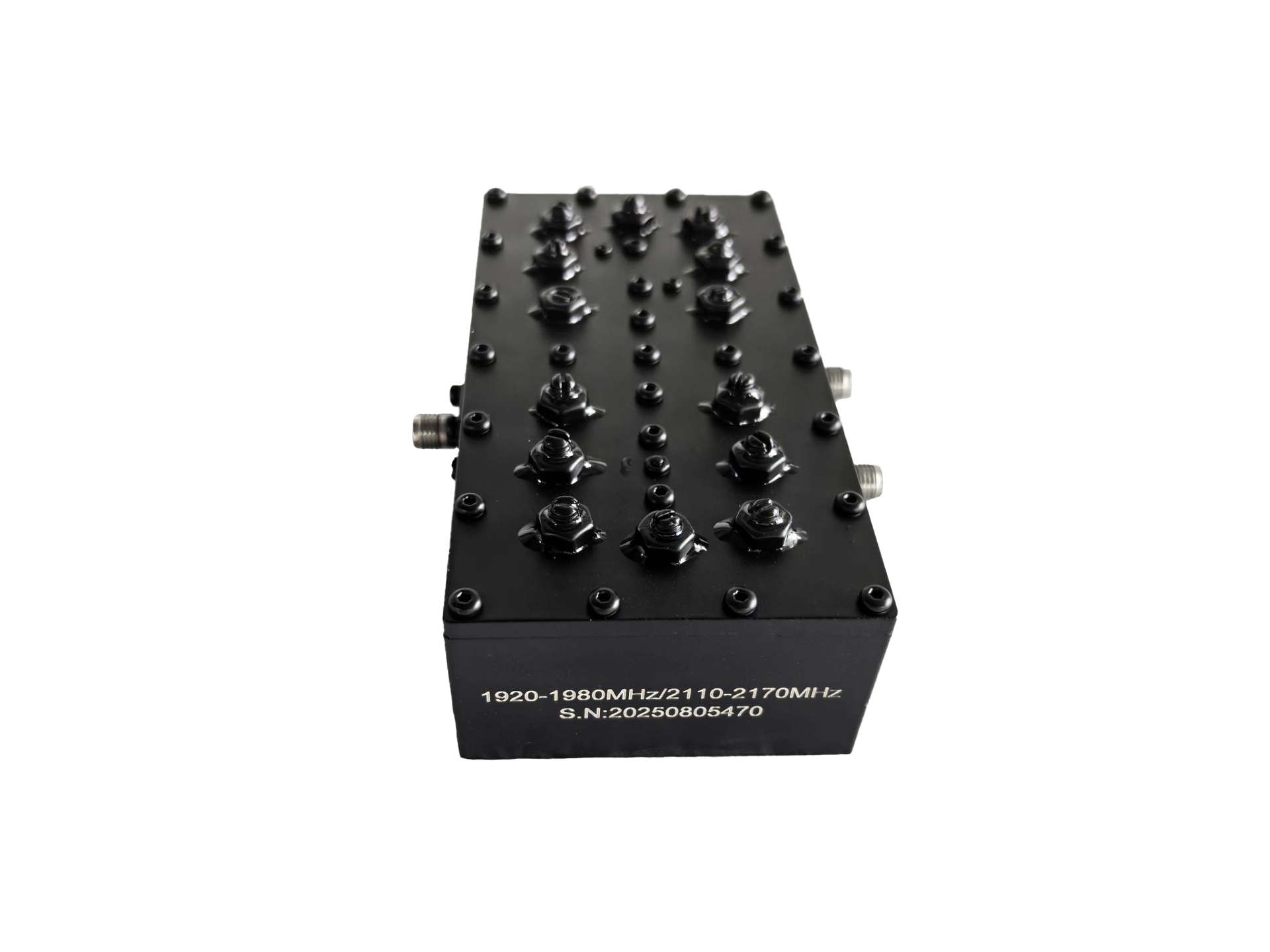

The CDU01920M02170Q04A from Concept Microwave is a 3G/4G FDD Band 1 cavity RF Duplexer/Combiner with passbands from 1920-1980MHz/2110-2170MHz. It has an good insertion loss of less than 0.8dB and an isolation of more than 60dB. This cavity Duplexer/Combiner can handle up to 100 W of power. It is available in a module that measures 132.0x132.0x30.0mm. This RF Duplexer design is built with SMA connectors that are female gender. Other configuration, such as different passband and different connector are available under different model numbers.
Concept offers the best Duplexers/triplexer/filters in the industry, Duplexers/triplexer/filters have been broadly used in Wireless, Radar, Public Safety, DAS
Applications
TRS, GSM, Cellular, DCS, PCS, UMTS
WiMAX, LTE System
Broadcasting, Satellite System
Point to Point & Multipoint
Futures
• Small size and excellent performances
• Low passband insertion loss and high rejection
• Broad, high frequency pass and stopbands
• Microstrip, cavity, LC , helical structures are avaliable according to different applications
Availability: NO MOQ, NO NRE and free for testing
Product Specifications
| Frequency range |
Low |
High |
|
|
1710-1785MHz |
1805-1880MHz |
||
| Insertion loss |
≤1.0dB |
≤1.0dB |
|
| VSWR |
≤1.20 |
≤1.40 |
|
| Rejection |
≥60dB@1805-1880MHz |
≥60dB@1710-1785MHz |
|
| Power |
≤50W |
||
| Impedance |
50ohm |
||
Notes
1.Specifications are subject to change at any time without any notice.
2.Default is SMA-female connectors. Consult factory for other connector options.
OEM and ODM servies are welcomed. Lumped-element, microstrip, cavity, LC structures custom filter are avaliable according to different applications. SMA, N-Type, F-Type, BNC, TNC, 2.4mm and 2.92mm connectors are avaliable for option.
More customized notch filter/band stop ftiler , Pls reach us at : sales@concept-mw.com.
