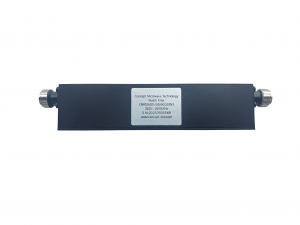

LTE Band 7 Notch Filter for Counter-Drone Systems | 40dB Rejection @ 2620-2690MHz
Description
Notch filter known also as a band stop filter or band stop filter, blocks and rejects frequencies that lie between its two cut-off frequency points passes all those frequencies either side of this range. It is another type of frequency selective circuit that functions in exactly the opposite way to the Band Pass Filter we looked at before. Band-stop filter can be represented as a combination of low-pass and high-pass filters if the bandwidth is wide enough that the two filters do not interact too much.
Applications
• Counter-UAS (CUAS) / Anti-Drone Systems
• Electronic Warfare (EW) & Signals Intelligence (SIGINT)
• Spectrum Management
• Critical Infrastructure Protection
Product Specifications
|
Notch Band |
2620-2690MHz |
|
Rejection |
≥40dB |
|
Passband |
DC-2540MHz & 2770-6000MHz |
| Insertion Loss |
≤1.0dB |
| VSWR |
≤1.5 |
| Average Power |
20W |
| Impedance |
50Ω |
Notes
1.Specifications are subject to change at any time without any notice.
2.Default is SMA-female connectors. Consult factory for other connector options.
OEM and ODM servies are welcomed. Lumped-element, microstrip, cavity, LC structures custom filter are avaliable according to different applications. SMA, N-Type, F-Type, BNC, TNC, 2.4mm and 2.92mm connectors are avaliable for option.
More customized notch filter/band stop ftiler , Pls reach us at : sales@concept-mw.com.
