Military Grade Ultra-Wideband RF Diplexer | DC-40MHz ,1500-6000MHz Bands

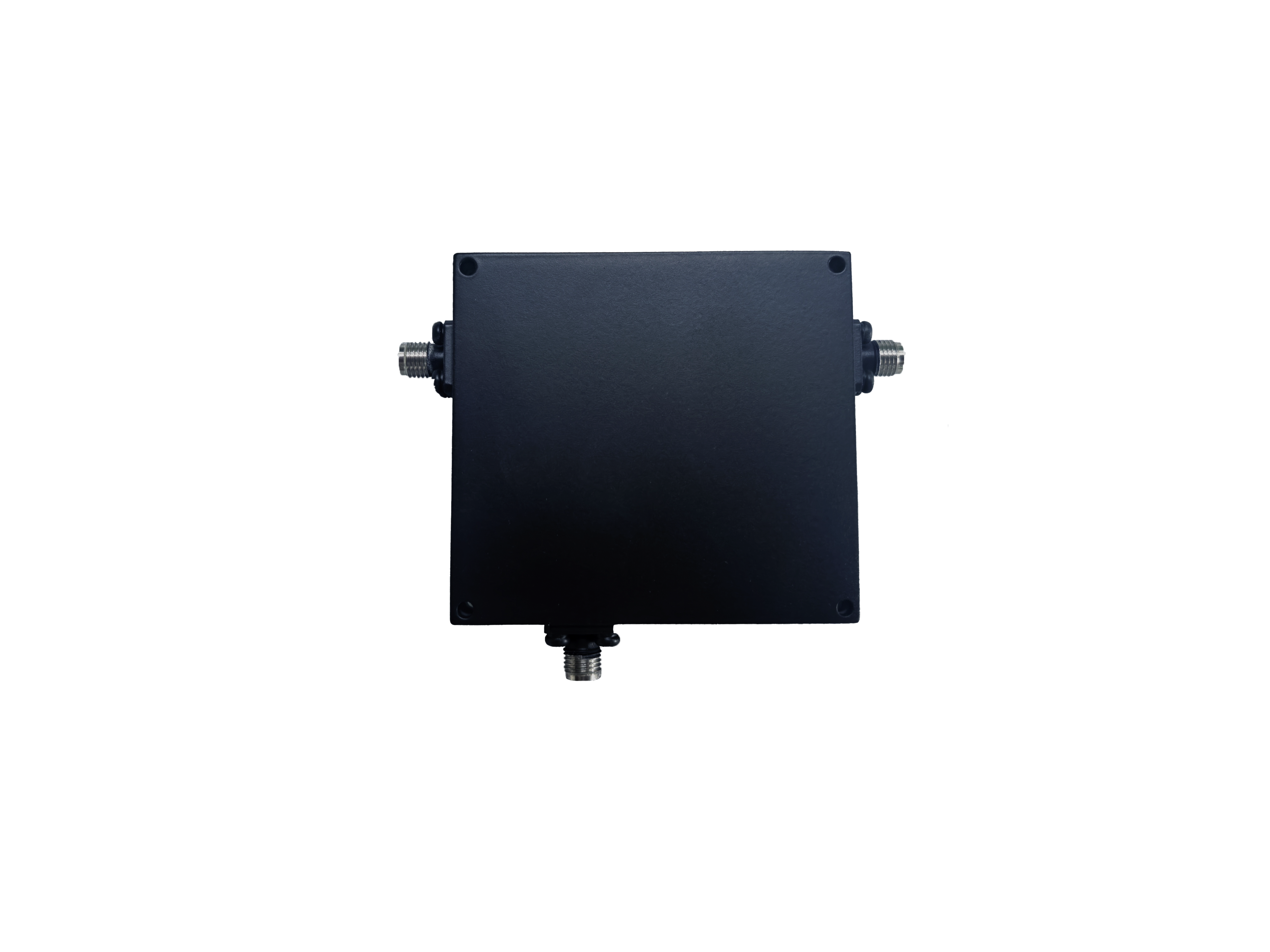

The CDU00040M01500A01 from Concept Microwave is a Ultra-Wideband RF Diplexer for EW/SIGINT Systems with passbands from DC-40MHz and 1500-6000MHz. It has an good insertion loss of less than 0.6dB and an isolation of more than 55dB. This cavity Duplexer/Combiner can handle up to 30 W of power. It is available in a module that measures 65.0×60.0×13.0mm. This RF Duplexer design is built with SMA connectors that are female gender. Other configuration, such as different passband and different connector are available under different model numbers.

Concept offers the best Duplexers/triplexer/filters in the industry, Duplexers/triplexer/filters have been broadly used in Wireless, Radar, Public Safety, DAS

Whatsapp Download as PDF

Product Detail

Product Tags

Description

The CDU00040M01500A01 from Concept Microwave is a Ultra-Wideband RF Diplexer for EW/SIGINT Systems with passbands from DC-40MHz and 1500-6000MHz. It has an good insertion loss of less than 0.6dB and an isolation of more than 55dB. This cavity Duplexer/Combiner can handle up to 30 W of power. It is available in a module that measures 65.0x60.0x13.0mm. This RF Duplexer design is built with SMA connectors that are female gender. Other configuration, such as different passband and different connector are available under different model numbers.

Concept offers the best Duplexers/triplexer/filters in the industry, Duplexers/triplexer/filters have been broadly used in Wireless, Radar, Public Safety, DAS

Applications

TRS, GSM, Cellular, DCS, PCS, UMTS
WiMAX, LTE System
Broadcasting, Satellite System
Point to Point & Multipoint

Futures

• Small size and excellent performances
• Low passband insertion loss and high rejection
• Broad, high frequency pass and stopbands
• Microstrip, cavity, LC , helical structures are avaliable according to different applications
Availability: NO MOQ, NO NRE and free for testing

Product Specifications

	Low Band	High Band
Frequency Range	DC-40MHz	1500-6000MHz
Insertion Loss	≤2.0dB	≤2.0dB
VSWR	≤1.8	≤1.8
Rejection	≥55dB@1500-6000MHz	≥55dB@DC-40MHz
Power	30W ( Pulses 20-30us, duty cycle 20% )	30W ( Pulses 20-30us, duty cycle 20% )
Impedance	50 OHMS

Notes

1.Specifications are subject to change at any time without any notice.

2.Default is SMA-female connectors. Consult factory for other connector options.

OEM and ODM servies are welcomed. Lumped-element, microstrip, cavity, LC structures custom filter are avaliable according to different applications. SMA, N-Type, F-Type, BNC, TNC, 2.4mm and 2.92mm connectors are avaliable for option.

More customized notch filter/band stop ftiler , Pls reach us at : sales@concept-mw.com.
