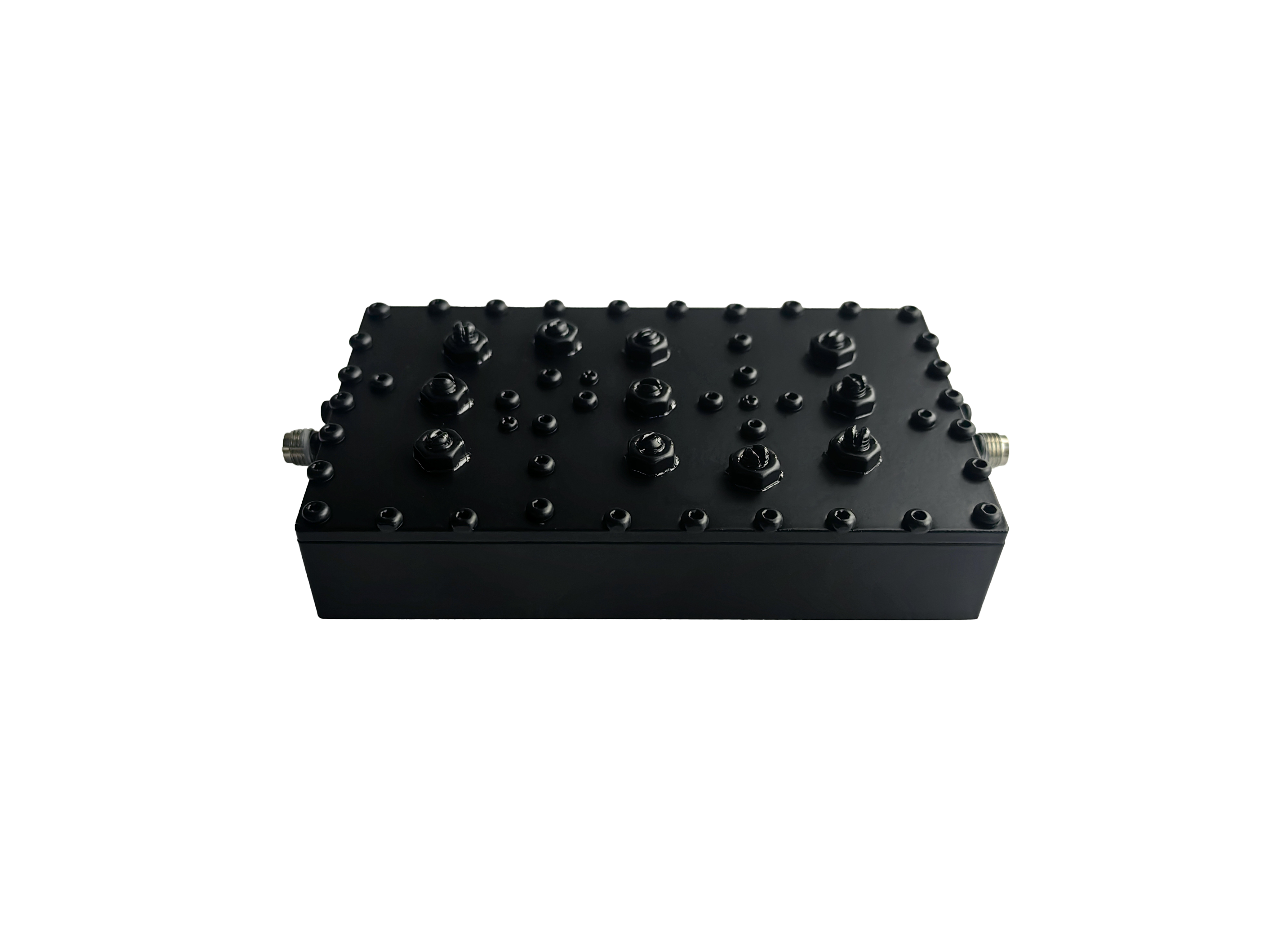

S Band 4G LTE Cavity Bandpass Filter With Passband From 2496MHz-2690MHz

CBF02496M02690Q08A is a L Band coaxial bandpass filter with a passband frequency of 2496-2690MHzHz. The typical insertion loss of the bandpass filter is 0.5dB . The rejection frequencies are DC-2366MHz and 2820-6000MHz with typical rejection is 70dB. The typical passband VSWR of the filter is better than 1.3. This RF cavity band pass filter design is built with SMA connectors that are female gender

Whatsapp Download as PDF

Product Detail

Product Tags

Description

This s Band cavity bandpass filter offers excellent 60dB out-of-band rejection and is designed to be installed in-line between the radio and antenna, or integrated within other communication equipment when additional RF filtering is required to improve network performance. This bandpass filter is ideal for tactical radio systems, fixed site infrastructure, base station systems, network nodes, or other communication network infrastructure that operates in congested, high-interference RF environments.

Futures

• Small size and excellent performances
• Low passband insertion loss and high rejection
• Broad, high frequency pass and stopbands
• Lumped-element, microstrip, cavity , LC structures are avaliable according to different applications

Product Specifications

Availability: NO MOQ , NO NRE and free for testing

Passband	2496-2690MHz
Insertion Loss	≤1.0dB
VSWR	≤1.3
Rejection	≥60dB@DC-2366MHz, ≥60dB@2820-6000MHz,
Avarege Power	20W
Impedance	50 OHMS
Passband	2496-2690MHz

Notes

OEM and ODM servies are welcomed. Lumped-element, microstrip, cavity, LC structures custom filter are avaliable according to different applications. SMA, N-Type, F-Type, BNC, TNC, 2.4mm and 2.92mm connectors are avaliable for option.

More customized notch filter/band stop ftiler , Pls reach us at : sales@concept-mw.com.
