S Band Cavity Bandpass Filter with Passband 3400MHz-3700MHz

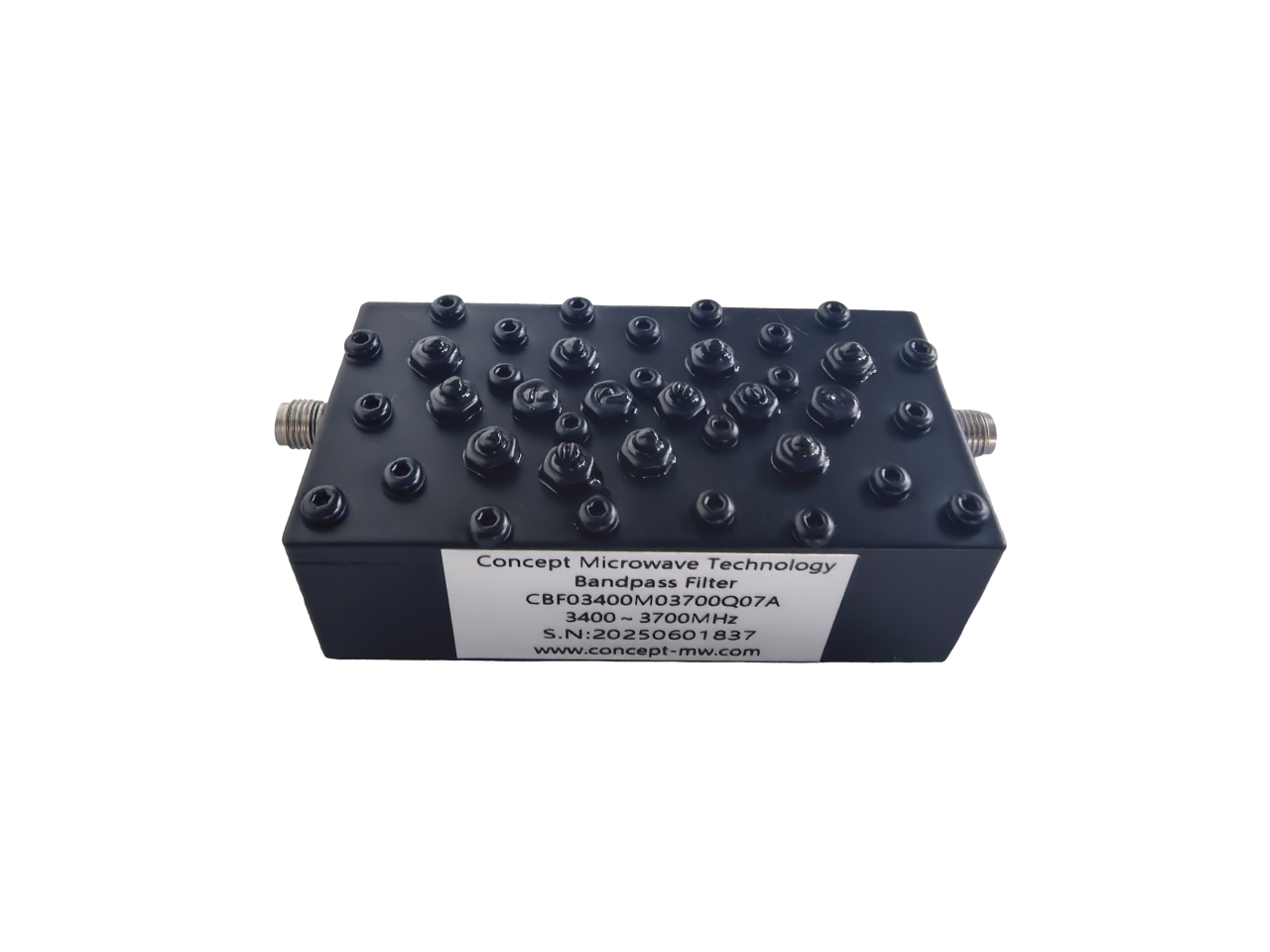

CBF03400M03700Q07A is a S Band coaxial bandpass filter with a passband frequency of 3400MHz-3700MHz. The typical insertion loss of the bandpass filter is 0.5dB . The rejection frequencies are DC~3200MHz and 3900~6000MHz with typical rejection is 50dB. The typical passband R.L of the filter is better than 22dB. This RF cavity band pass filter design is built with SMA connectors that are female gender

Whatsapp Download as PDF

Product Detail

Product Tags

Description

This S Band cavity bandpass filter offers excellent 50dB out-of-band rejection and is designed to be installed in-line between the radio and antenna, or integrated within other communication equipment when additional RF filtering is required to improve network performance. This bandpass filter is ideal for tactical radio systems, fixed site infrastructure, base station systems, network nodes, or other communication network infrastructure that operates in congested, high-interference RF environments.

Futures

• Small size and excellent performances
• Low passband insertion loss and high rejection
• Broad, high frequency pass and stopbands
• Lumped-element, microstrip, cavity , LC structures are avaliable according to different applications

Product Specifications

Availability: NO MOQ , NO NRE and free for testing

Pass Band	5000-8700MHz
Rejection	≥100dB@2500-2900MHz
Insertion Loss	≤2.0dB
Return Loss	≥15dB@Passband ≥15dB@Rejection Band
Average Power	≤20W@Passband CW ≤1W@Rejection Band CW
Impedance	50Ω

Notes

OEM and ODM servies are welcomed. Lumped-element, microstrip, cavity, LC structures custom filter are avaliable according to different applications. SMA, N-Type, F-Type, BNC, TNC, 2.4mm and 2.92mm connectors are avaliable for option.
