Ultra-Narrow L-Band Notch Filter, 1621.020833MHz Center, ≥50dB Rejection

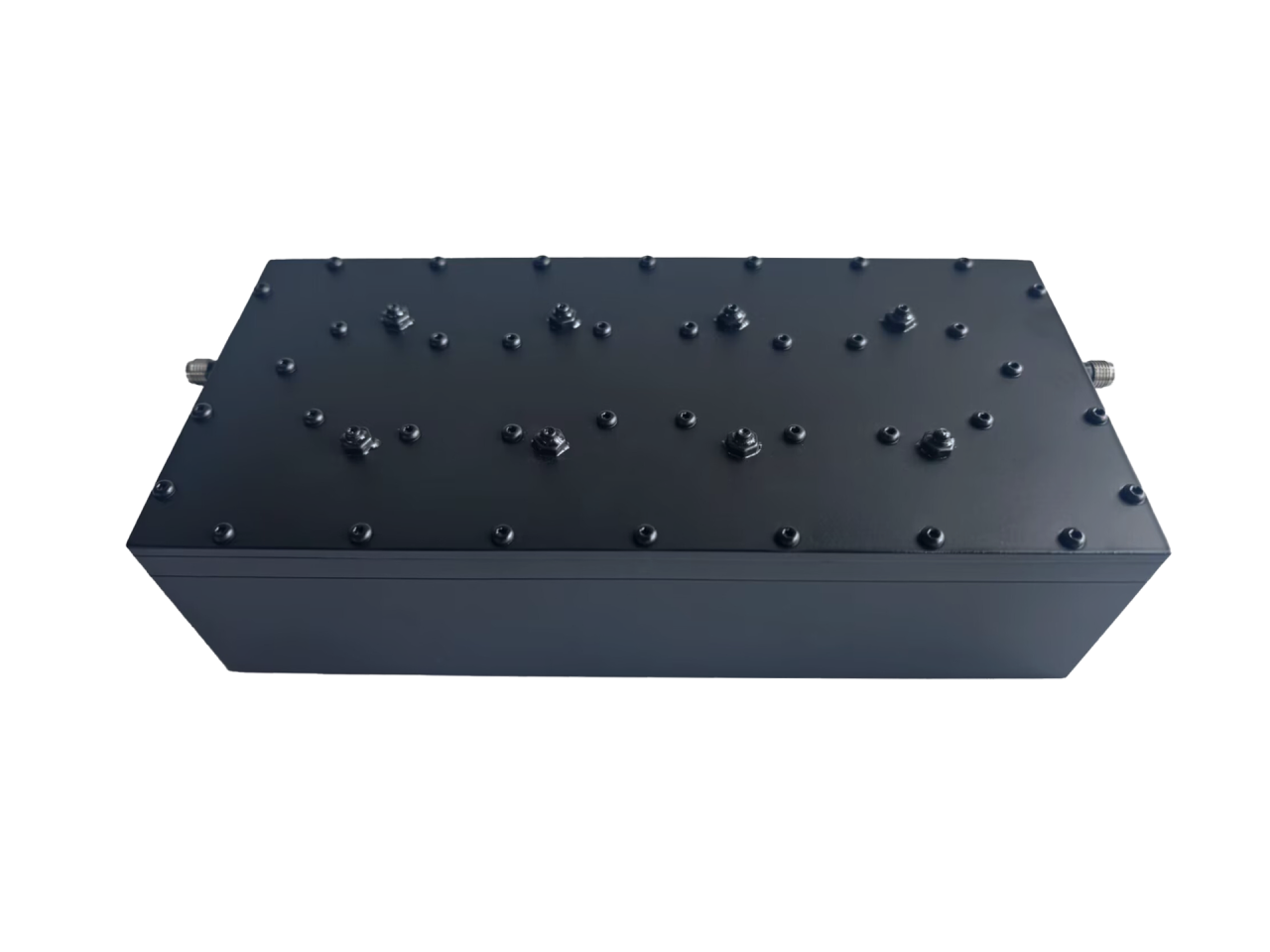

Concept model CNF01621M01621Q08A1 cavity notch filter is designed to offer precise protection for the 1621MHz frequency band. Characterized by its ultra-narrow notch centered at 1621.020833MHz ±25KHz and ≥50dB of rejection, it serves as a critical component for eliminating interference in sensitive satellite communication receive paths, ensuring signal integrity and system reliability.

Whatsapp Download as PDF

Product Detail

Product Tags

Descripton

Notch filter known also as a band stop filter or band stop filter, blocks and rejects frequencies that lie between its two cut-off frequency points passes all those frequencies either side of this range. It is another type of frequency selective circuit that functions in exactly the opposite way to the Band Pass Filter we looked at before. Band-stop filter can be represented as a combination of low-pass and high-pass filters if the bandwidth is wide enough that the two filters do not interact too much.

Applications

• Spectrum Clearing for Testing

• Satellite Communication (Satcom) Terminals

• RFI Mitigation for Aerospace & Defense

• Critical Infrastructure Protection

Notch Band	1621.020833MHz±25KHz
Rejection	≥50dB
Passband	DC-1619.02MHz & 1623.02-3000MHz
Insertion loss	≤2.0dB
VSWR	≤2.0
Average Power	≤10W
Impedance	50Ω

Notes

1. Specifications are subject to change at any time without any notice.

2. Default is SMA-female connectors. Consult factory for other connector options.

OEM and ODM servies are welcomed. Lumped-element, microstrip, cavity, LC structures custom filter are avaliable according to different applications. SMA, N-Type, F-Type, BNC, TNC, 2.4mm and 2.92mm connectors are avaliable for option.

More customized notch filter/band stop ftiler , Pls reach us at : sales@concept-mw.com.
