DC~6800MHz/10400-13600MHz/15600-20400MHz Microstrip Triplexer

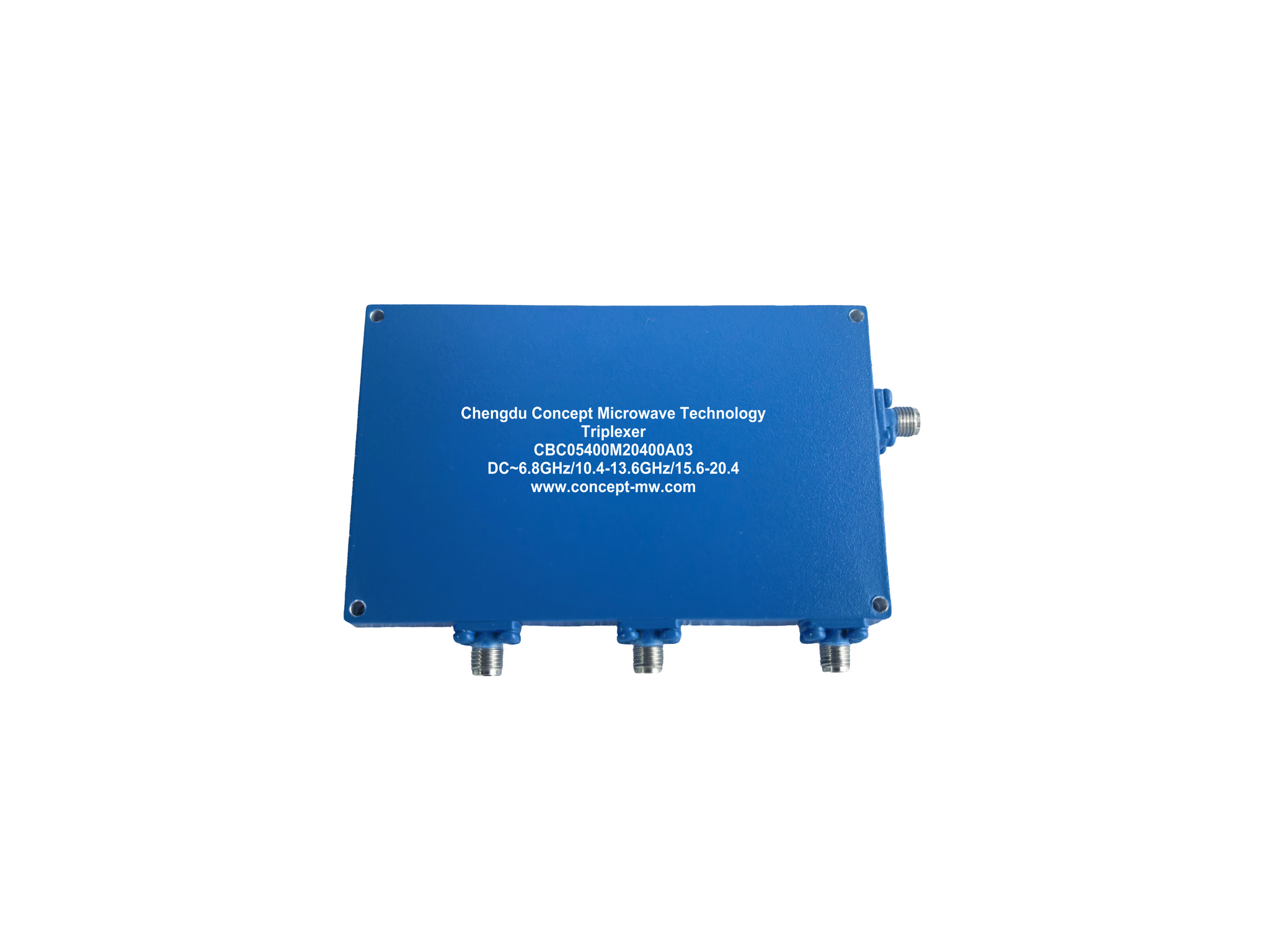

The CBC05400M20400A03 from Concept Microwave is a microstrip triplexer/triple-band combiner with passbands from DC~6800MHz/10400-13600MHz/15600-20400MHz. It has an insertion loss of less than 1.5dB and an isolation of more than 60dB. The duplexer can handle up to 20 W of power. It is available in a module that measures 101.6×63.5×10.0mm. This RF cavity duplexer design is built with SMA connectors that are female gender. Other configuration, such as different passband and different connector are available under different model numbers.

Concept offers the best cavity triplexer filters in the industry, our cavity triplexer filters have been broadly used in Wireless, Radar, Public Safety, DAS

Whatsapp Download as PDF

Product Detail

Product Tags

Applications

TRS, GSM, Cellular, DCS, PCS, UMTS

WiMAX, LTE System

Broadcasting, Satellite System

Point to Point & Multipoint

Fetures

• Small size and excellent performances

• Low passband insertion loss and high rejection

• Broad, high frequency pass and stopbands

• Microstrip, cavity, LC , helical structures are avaliable according to different applications

Availability: NO MOQ, NO NRE and free for testing

Pass band Frequency	DC-6.8GHz	10.4-13.6GHz	15.6-20.4GHz	GHz
Insertion Loss	≤1.5dB			dB
Insertion Loss Flatness	≤0.6dB over 100MHz Bandwidth
Stop Band Attention	≥60dB@8-20GHz	≥60dB@5-7.5GHz ≥60dB@15.6-20GHz	≥60dB@DC-13.6GHz	dB
Return Loss	≥12db@5.4-6.8GHz ≥10dB@DC-5.4GHz	≥12dB	≥12dB	dB
Power	20			W cw

Notes:

1.Specifications are subject to change at any time without any notice.
2.Default is SMA female connectors. Consult factory for other connector options.

OEM and ODM servies are welcomed. Lumped-element, microstrip, cavity, LC structures custom triplexer are avaliable according to different applications. SMA, N-Type, F-Type, BNC, TNC, 2.4mm and 2.92mm connectors are avaliable for option.

Please feel freely to contact with us if you need any different requirements or a customized triplexer: sales@concept-mw.com.
