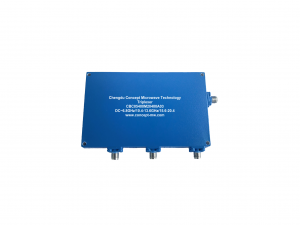

Duplexer/Multiplexer/Combiner

Features

1. Small size and excellent performances

2. Low passband insertion loss and high rejection

3. SSS, cavity, LC, helical structures are avaliable according to different applications

4. Custom Duplexer, Triplexer, Quadruplexer, Multiplexer and Combiner are avaliable

Whatsapp Send email to us

Product Detail

Product Tags

Description

Cavity duplexers are three port devices used in Tranceivers (transmitter and receiver) to separate the Transmitter frequency band from the receiver frequency band. They share a common antenna while working simultaneously at different frequencies. A duplexer is basically a high and a low pass filter connected to an antenna.

Applications

1. TRS, GSM, Cellular, DCS, PCS, UMTS
2. WiMAX, LTE System, 5G Wireless Communications
3. Broadcasting, Satellite System
4. Point to Point & Multipoint

Part Number	Low Band Start	Low Band Insertion Loss	Low band Stop	Isolation	High Band Start	High Band Insertion	High Band Stop	VSWR
CDU00454M00464A01	451MHz	1.30dB	457MHz	30dB	460MHz	1.30dB	468MHz	1.3
CDU00408M00417A01	406MHz	1.30dB	411MHz	55dB	415MHz	1.30dB	420MHz	1.3
CDU00701M00729N01	698MHz	2.10dB	704MHz	100dB	728MHz	2.10dB	734MHz	1.3
CDU00707M00737N01	704MHz	2.10dB	710MHz	100dB	734MHz	2.10dB	740MHz	1.3
CDU00713M00743N01	710MHz	2.10dB	716MHz	100dB	740MHz	2.10dB	746MHz	1.3
CDU00751M00781N01	746MHz	0.50dB	757MHz	85dB	776MHz	0.50dB	787MHz	1.3
CDU00815M00860N01	806MHz	0.70dB	824MHz	95dB	851MHz	0.70dB	869MHz	1.3
CDU00836M00881N01	824MHz	1.00dB	849MHz	70dB	869MHz	1.00dB	894MHz	1.3
CDU00907M00947N01	889MHz	1.20dB	925MHz	70dB	934MHz	1.20dB	960MHz	1.3
CDU01747M01842N01	1710MHz	1.50dB	1775MHz	70dB	1805MHz	1.50dB	1880MHz	1.3
CDU01880M01960N01	1850MHz	1.50dB	1910MHz	70dB	1930MHz	1.50dB	1990MHz	1.3
CDU01950M02140N01	1920MHz	1.00dB	1980MHz	90dB	2110MHz	1.00dB	2170MHz	1.3
CDU02450M05500N01	2400MHz	0.50dB	2500MHz	80dB	5000MHz	0.50dB	6000MHz	1.3
CDU04390M04720A01	4360MHz	2.00dB	4420MHz	60dB	4690MHz	2.00dB	4750MHz	1.3
CDU05185M05315A01	5150MHz	2.00dB	5220MHz	65dB	5280MHz	1.30dB	5350MHz	1.4
CDU05745M05805A01	5725MHz	2.50dB	5765MHz	55dB	5785MHz	2.50dB	5825MHz	1.3
CDU06893M06957A01	6875MHz	2.50dB	6911MHz	60dB	6939MHz	2.50dB	6975MHz	1.3
CDU07256M07357A01	7226MHz	2.50dB	7286MHz	60dB	7327MHz	2.50dB	7387MHz	1.3
CDU07224M07661W01	7124MHz	1.00dB	7324MHz	90dB	7561MHz	1.00dB	7761MHz	1.3
CDU09142M09420W01	9120MHz	1.00dB	9140MHz	50dB	9400MHz	1.00dB	9440MHz	1.3
CDU10262M10537N01	10150MHz	2.50dB	10375MHz	60dB	10425MHz	2.50dB	10650MHz	1.3
CDU10827M11322NA1	10700MHz	1.50dB	10955MHz	65dB	11200MHz	1.50dB	11445MHz	1.5
CDU11070M11570NA1	11940MHz	1.50dB	11200MHz	65dB	11440MHz	1.50dB	11700MHz	1.5
CDU14660M15250A01	14400MHz	3.50dB	14920MHz	50dB	15150MHz	3.50dB	15350MHz	1.8
CDU15445M15988A01	15320MHz	1.50dB	15570MHz	80dB	15921MHz	1.50dB	16056MHz	1.3

Concept offers the highest quality RF and Microwave Custom Duplexer, Triplexer, Quadruplexer, Multiplexer and Combiner for commercial and military applications. Also , Custom Low PIM components are avaliable for your option. If you have any questions, please feel free to contact us any time at sales@concept-mw.com.
